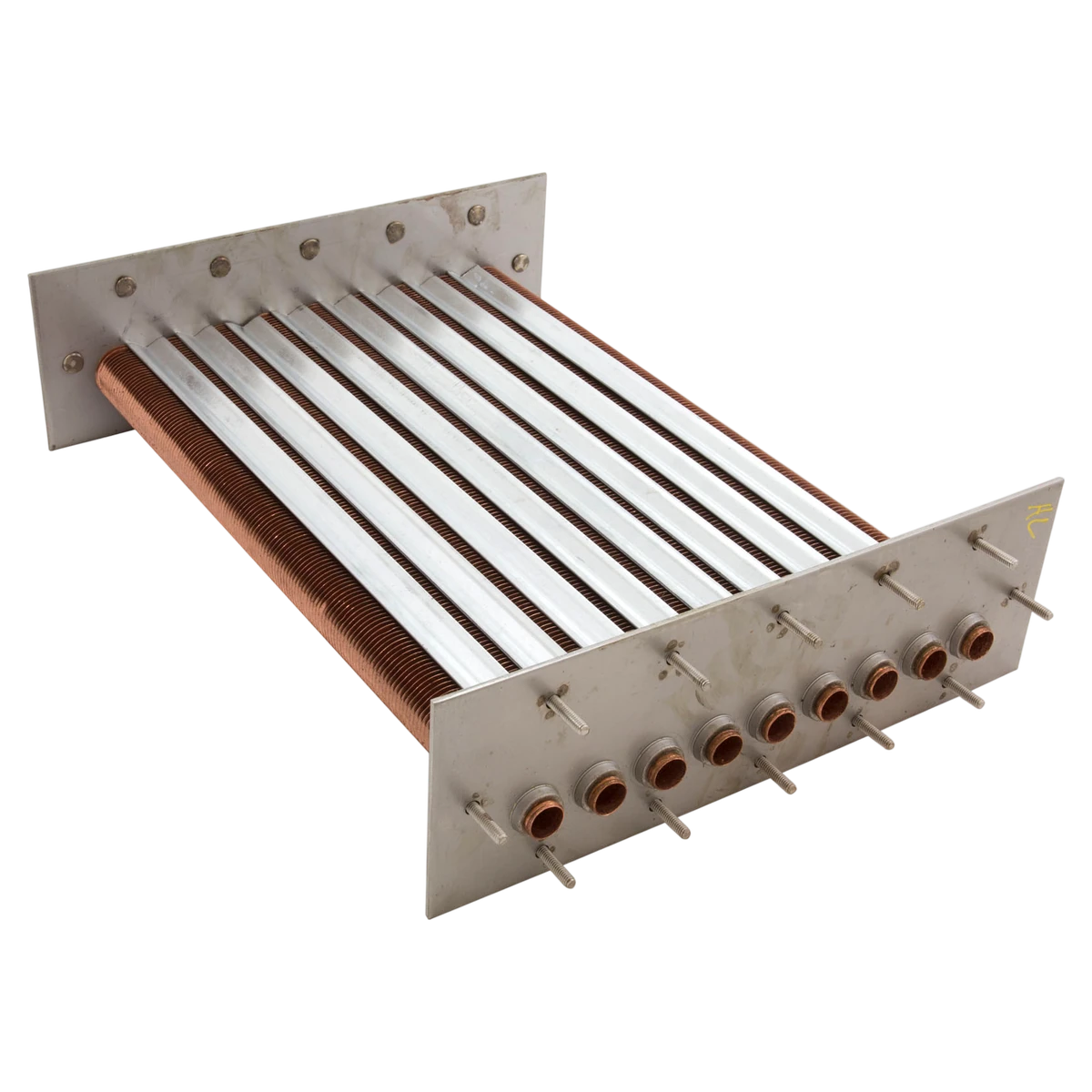

336A/337A Copper Tube Bundle

The 010061F copper tube bundle replaces the heat exchanger core in Raypak 336A and 337A Digital Low NOx heaters with polymer (plastic) headers, restoring heat transfer after a failed or leaking bundle.

Key Features

• Copper construction
• Built for polymer (plastic) header models

Compatibility

• Raypak 336A and 337A (Digital Low NOx, polymer header)
• Raypak P-R336A and P-R337A
• Raypak P-M336A / P-M336A-EN / P-M336A-EP
• Does not fit commercial 336/337 tube bundles with metal headers

What's Included

• Baffle
• Flange nut kit
• (2) O-ring gaskets

Replace or inspect the bypass valve and Unitherm Governor when installing this bundle, since the water conditions that damaged the original tube bundle usually damage these parts too.

This bundle fits the residential polymer-header 336A/337A heat exchanger only; the commercial metal-header tube bundle shares the same model numbers but does not interchange with this part.
