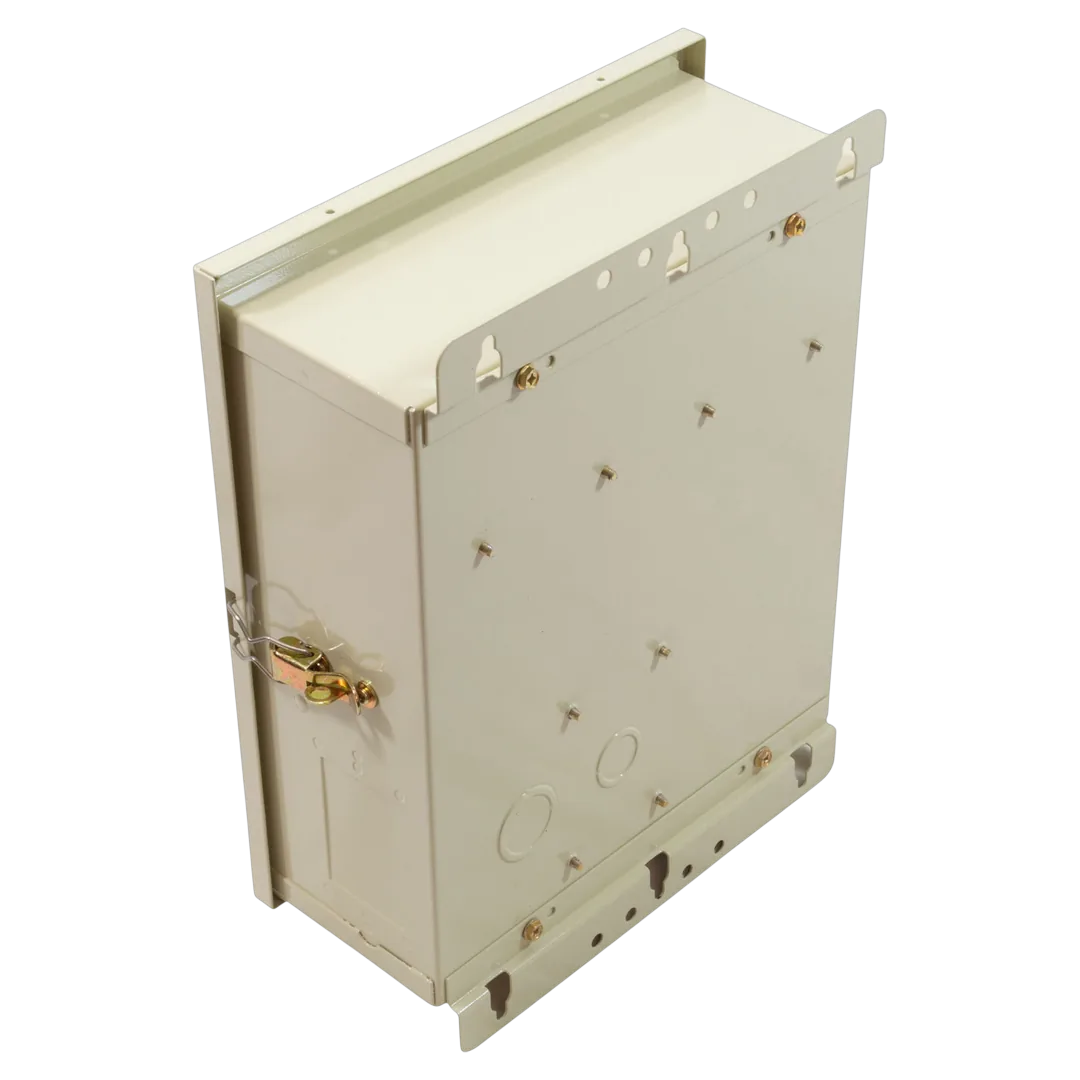

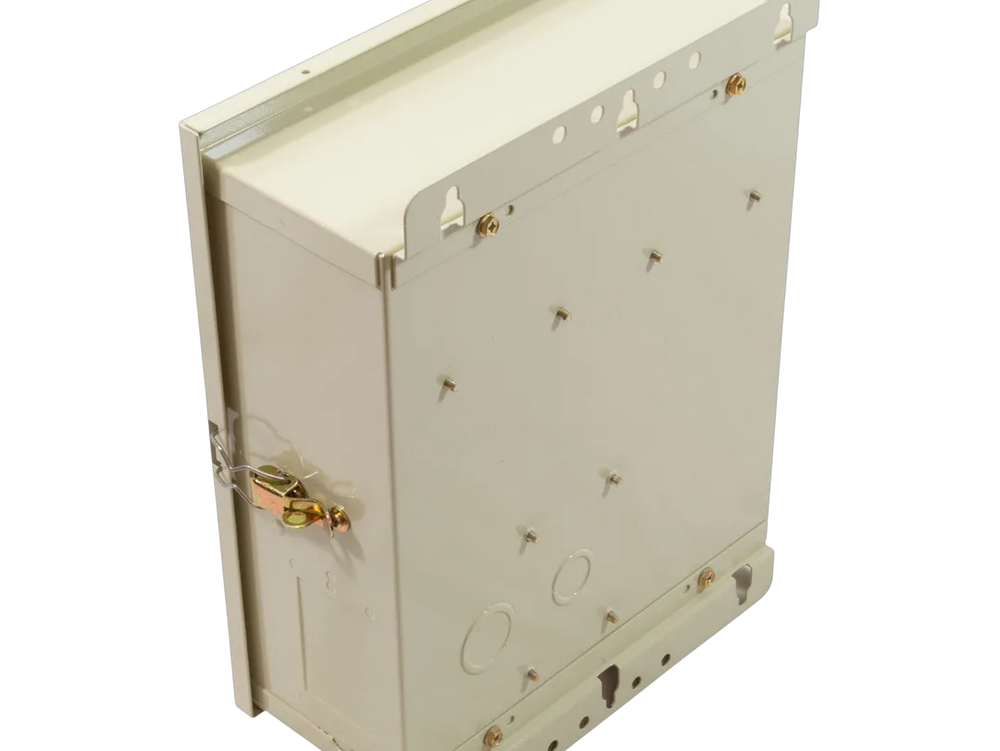

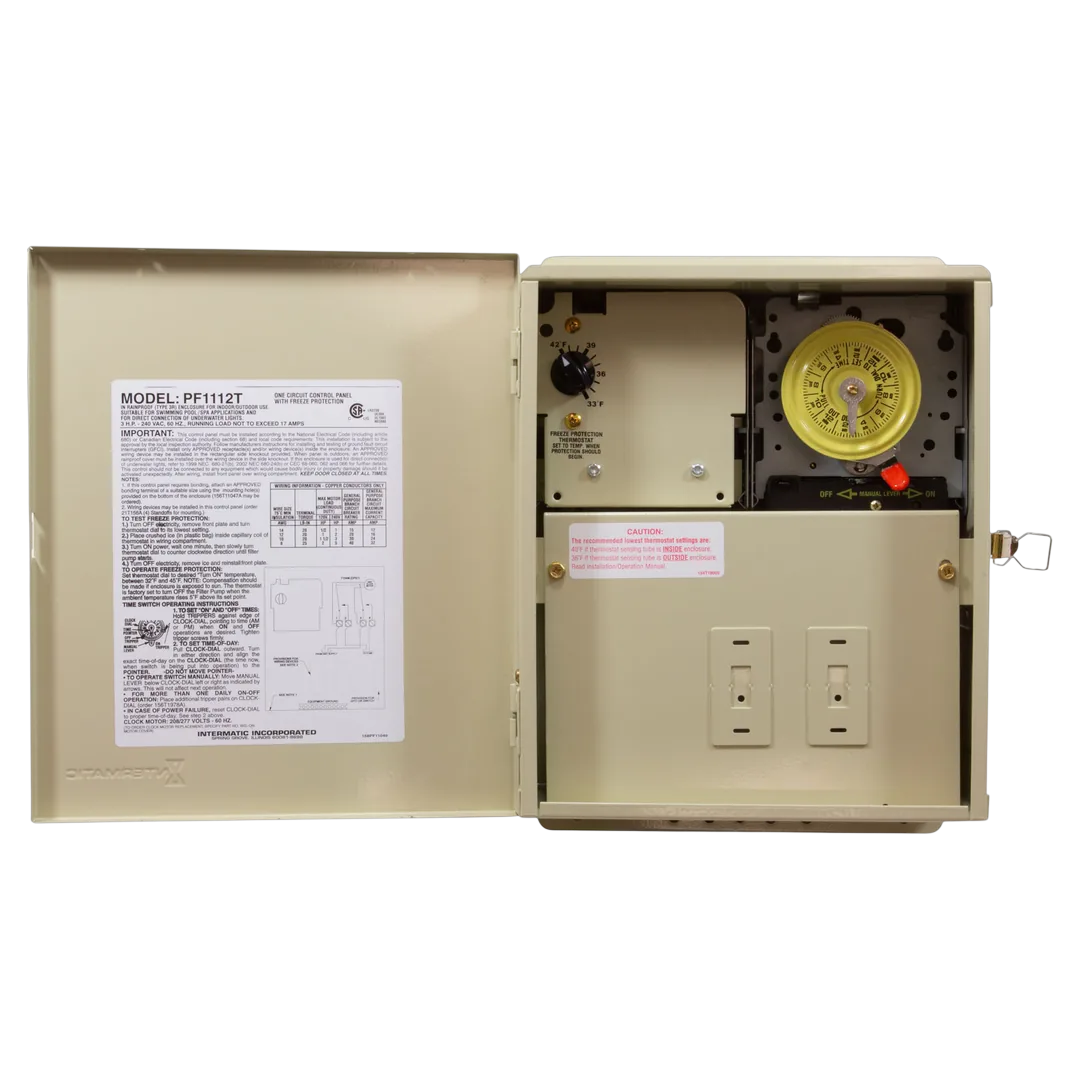

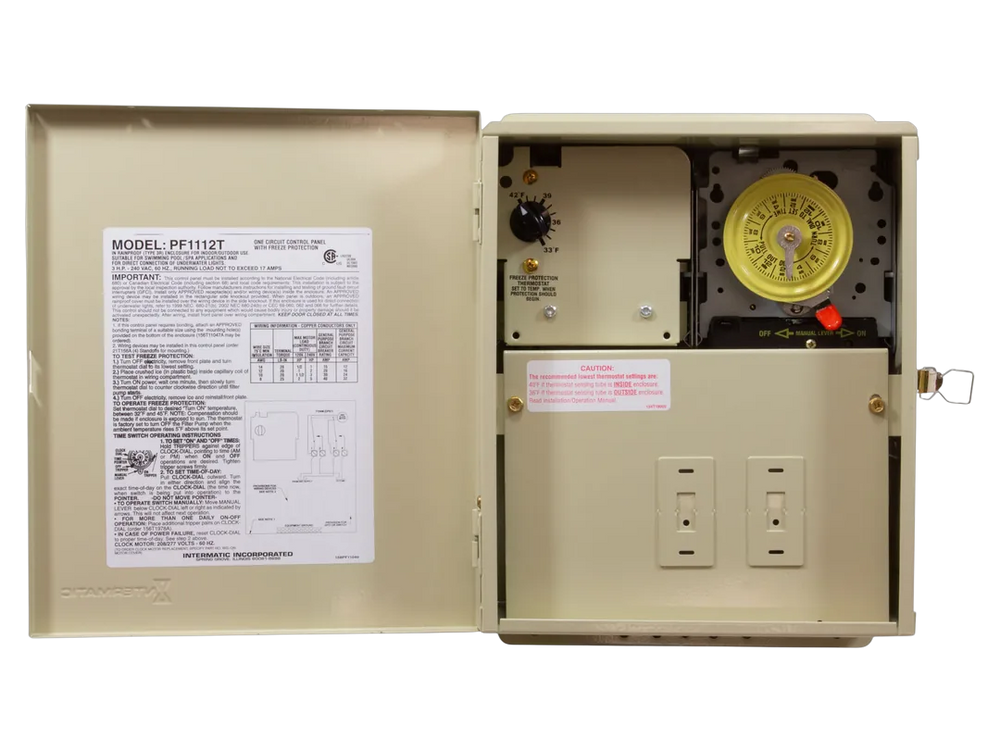

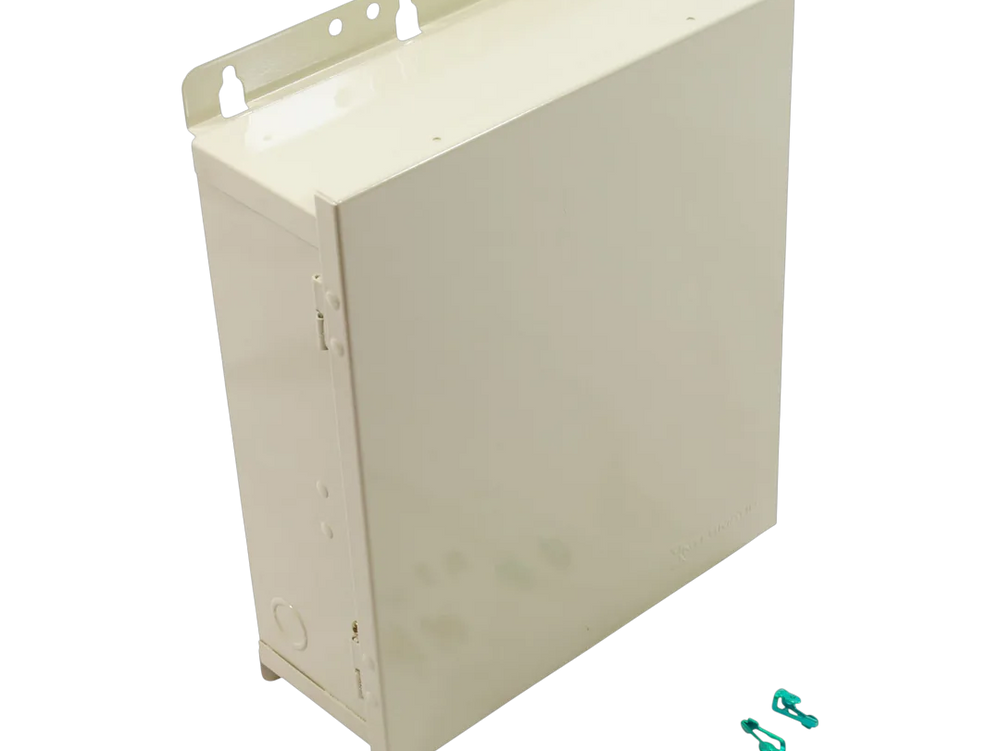

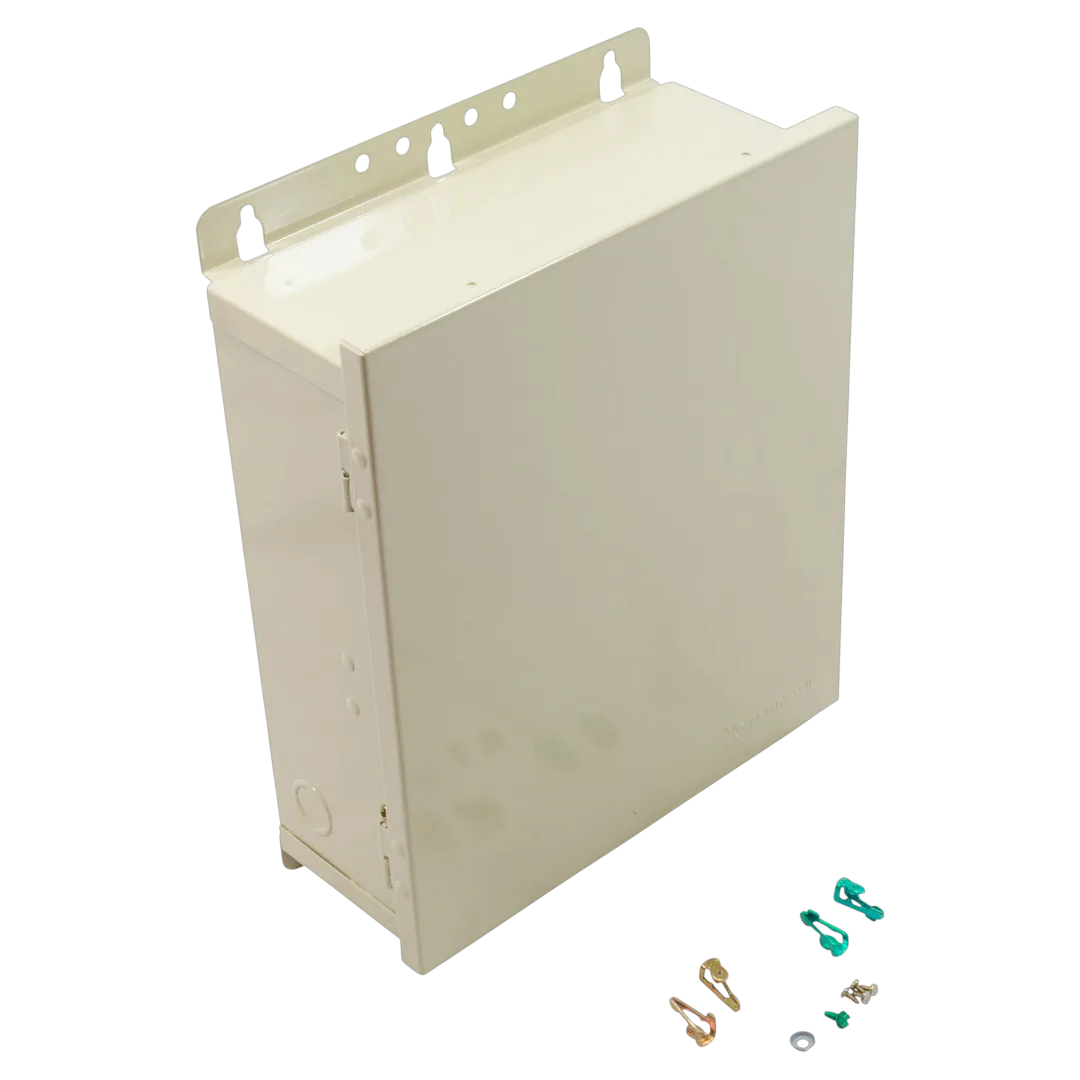

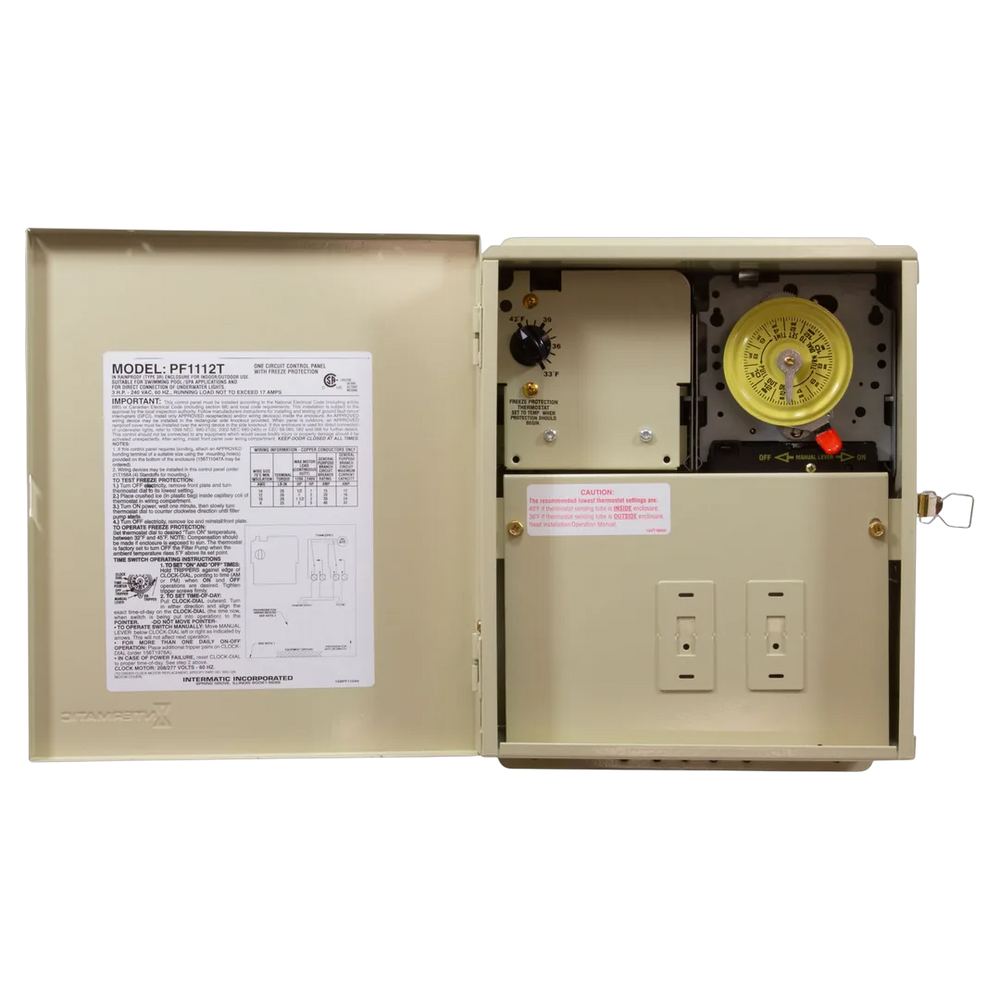

Intermatic PF1112T Freeze Protection Control Center
Intermatic | SKU:
PF1112T
$39400
/ea
Unit price
/
Unavailable
Intermatic PF1112T Freeze Protection Control Center is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Intermatic PF1112T is a freeze protection control center equipped with a timer and thermostat designed for 240V pool and spa applications. It features a Type 3R metal enclosure, includes a T104 240-volt timer, and a relay to manage 40 amp capacity. This control center has a screw connector type, supports a current rating of 17 amps, and includes normally open contact for operation.
Includes: Power Center with (1) T104M Time Switch
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | PF1112T |
| Part Number | PF1112T |
| Part Type | Freeze Protection Control Center |
| Includes | Power Center with (1) T104M Time Switch |
| Certifications | cCSAus Certified |
| Material | Metal |
| Switch Type | DPST |
| Number of Circuits | 1 |
| Input Voltage | 240 VAC, 60 Hz |
| Resistive Load | 17 A, 240 VAC, 60 Hz |
| Motor Load | 3 HP, 240 VAC, 60 Hz |
| Thermostat Range | 33°F to 42°F (0.5°C to 5.5°C) |
| Power Consumption | 3 W |
| Enclosure Type | Type 3R Steel |
| Mount Type | Wall Mount |
| Shipping Dimensions | 13.81 x 12.06 x 5.63 inch |
| Product Weight | 11.177 pound |
